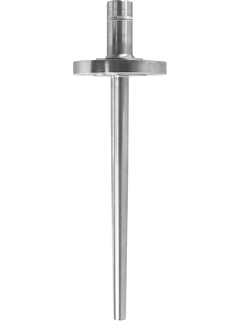

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.
Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.
The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements
A wide choice of standard materials and flanged connections is available; special versions can be ordered according to specifications
Different grades of surface finishing are also available
The thermowell stem shape can be straight, conical or conical tapered
The process connection is flanged with double sided standard or full penetration weld
Field of application
TA576 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.
