Conductive
Point level detection
One rod probe 11961Z

High resistance point level detection of conductive liquids steam boilers and aggressive media

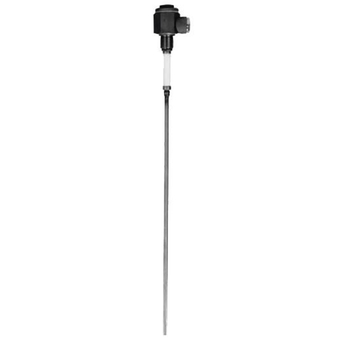

  • Probe 11961Z ©Endress+Hauser

The 11961Z is a highly resistant probe for applications with aggressive medium thanks to corrosion-resistant materials for rod and insulation. It can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water.

Benefits

  • Safe and reliable measurement even in aggressive medium thanks to corrosion-resistant materials for rod and insulation

  • Can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water

  • Can be deployed particularly with high pressure or vacuum

  • Probe can be shortened as required

Field of application

For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0, or pump protection in pipes and two-point control.

  • Process connection: Thread

  • Measuring range: 100 to 2,000mm (5.9 to 78.7")

  • Temperature: -200 to +250°C (-328 to 482°F)

  • Pressure: -1 to +160bar (-15 to +2,320psi)

  • Components: Transmitter FTW325

  • International explosion protection certificates, overfill prevention WHG

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: One rod probe 11961, One rod probe 11961ZF
