Differential pressure flow
Orifice: special designs for differential pressure flowmeter system based on international standards

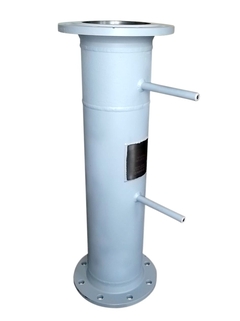

The Deltatop DO69S is part of the universal differential pressure flowmeter systems. With venturi tubes, nozzles, orifice plates and Deltabar differential pressure transmitters. In addition to the standard products DO61W, DO62C, DO63C, DO64P, DO65F, Endress+Hauser also supplies primary devices in the form of orifice plates in a wide range of special designs which cannot be specified within the framework of the standard products mentioned above.
Customized or application-specific flowmeter systems based on the differential pressure method for special applications
Optimized for minimum pressure loss, maximum accuracy or maximum turndown
Measuring range of the Deltabar differential pressure transmitter adjusted on delivery
Based on international standards (e.g. ISO 5167)
Cost-effective solution thanks to its robust design without moving parts
Field of application
Flow measurement of gases, steam and liquids.
Pipe diameters from DN10 (3/8") to DN2000 (80")
Medium temperatures: -200 to +1,000°C (-328 to +1,832°F)
Pressure up to 420bar (6,300psi)
Compliant with PED 97/23/EC
