Specs at a glance
-
Max. measurement error
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
-
Measuring range
up to 750 l/min
-
Medium temperature range
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest -
Max. process pressure
16 bar
-
Wetted materials
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Field of application

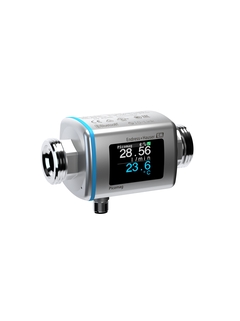

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
Device properties
High shock and vibration resistance
Degree of protection: IP65/67
Empty pipe detection
Wireless remote access via Bluetooth SmartBlue app
IO-Link and various I/Os for all line-sizes
1.4" TFT color display with backlight
Benefits
Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection
Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement
Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing
Quick offline configuration check – unique, comfortable knock functionality
Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue App
Instant local process monitoring – large, user-friendly display of all measurement activities
Flexible integration into all fieldbus systems – plug-and-play device with IO-Link
Videos
-
-
-
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections Technical excellence Simplicity - F
- L
- E
- X
Fundamental selection
Meet your basic measurement needs
Technical excellence Simplicity - F
- L
- E
- X
Lean selection
Handle your core processes easily
Technical excellence Simplicity - F
- L
- E
- X
Extended selection
Optimize your processes with innovative technologies
Technical excellence Simplicity - F
- L
- E
- X
Xpert selection
Master your most challenging applications
Technical excellence Simplicity Variable
Loading alternative products
Success stories
Could also interest you
Search spare parts by number in drawing60 spare parts & accessories60 spare parts & accessories60 spare parts & accessories-
Set earthing terminal, Picomag DMA
-
Terminals
Drawing numberOrder code371345225 -
-
Set seal Picomag DMA15 aramid fiber
-
Sealing
Drawing numberOrder code271354741 -
-
Set seal Picomag DMA20 aramid fiber
-
Sealing
Drawing numberOrder code271354742 -
-
Set seal Picomag DMA25 aramid fiber
-
Sealing
Drawing numberOrder code271354745 -
-
Set seal Picomag DMA50 aramid fiber
-
Sealing
Drawing numberOrder code271354746 -
-
Picomag, DMA
-
further parts
Order codeDMA- -
-
Set cable 2m/6.5ft,straight,4x0.34,M12
Drawing numberOrder code571349260 -
Set cable 5m/16.4ft,straight,4x0.34,M12
Drawing numberOrder code571349261 -
Set cable 10m/32.8ft,straight,4x0.34,M12
Drawing numberOrder code571349262 -
Set cable 2m/6.5ft,90deg,4x0.34,M12
Drawing numberOrder code471349263 -
Set cable 5m/16.4ft,90deg,4x0.34,M12
Drawing numberOrder code471349264 -
Set cable 10m/32.8ft,90deg,4x0.34,M12
Drawing numberOrder code471349265 -
Set adapter Picomag G1/2"/G3/8" ext.
Drawing numberOrder code171355698 -
Set adapter Picomag G1/2"/R3/8" ext.
Drawing numberOrder code171355699 -
Set adapter Picomag G1/2"/NPT3/8" ext.
Drawing numberOrder code171355700 -
Set adapter Picomag G1/2"/G1/2" int.
Drawing numberOrder code171355701 -
Set adapter Picomag G1/2"/R1/2" ext.
Drawing numberOrder code171355702 -
Set adapter Picomag G1/2"/NPT1/2"ext.
Drawing numberOrder code171355703 -
Set adapter Picomag G1/2"/1/2" TriClamp
Drawing numberOrder code171355704 -
Set adapter Picomag G3/4"/R3/4" ext.
Drawing numberOrder code171355705 -
Set adapter Picomag G3/4"/NPT3/4"ext.
Drawing numberOrder code171355706 -
Set adapter Picomag G3/4"/G3/4" int.
Drawing numberOrder code171355707 -
Set adapter Picomag G3/4"/3/4" TriClamp
Drawing numberOrder code171355708 -
Set adapter Picomag G1"/R1" ext.
Drawing numberOrder code171355709 -
Set adapter Picomag G1"/NPT1" ext.
Drawing numberOrder code171355710 -
Set adapter Picomag G1"/G1" int.
Drawing numberOrder code171355711 -
Set adapter Picomag G1"/1" TriClamp
Drawing numberOrder code171355712 -
Set adapter Picomag G2"/R1 1/2" ext.
Drawing numberOrder code171355713 -
Set adapter Picomag G2"/R2" ext.
Drawing numberOrder code171355714 -
Set adapter Picomag G2"/NPT1 1/2" ext.
Drawing numberOrder code171355715 -
Set adapter Picomag G2"/NPT2" ext.
Drawing numberOrder code171355716 -
Set adapter Picomag G2"/G1 1/2" ext.
Drawing numberOrder code171355717 -
Set adapter Picomag G2"/G2" int.
Drawing numberOrder code171355718 -
Set adapter Picomag G2"/2" TriClamp
Drawing numberOrder code171355719 -
Set adapter Picomag G2"/2" Victaulic
Drawing numberOrder code171355720 -
Set adapter Picomag G2"/2" Press fitting
Drawing numberOrder code171399930 -
Set adapter Picomag G1/2"/R1/2"union nut
Drawing numberOrder code171458012 -
Set adapter Picomag G3/4"/R1/2"union nut
Drawing numberOrder code171458013
