Frequency and antenna selection affects accuracy measurement

Accuracy of free space radar depends on multiple criteria

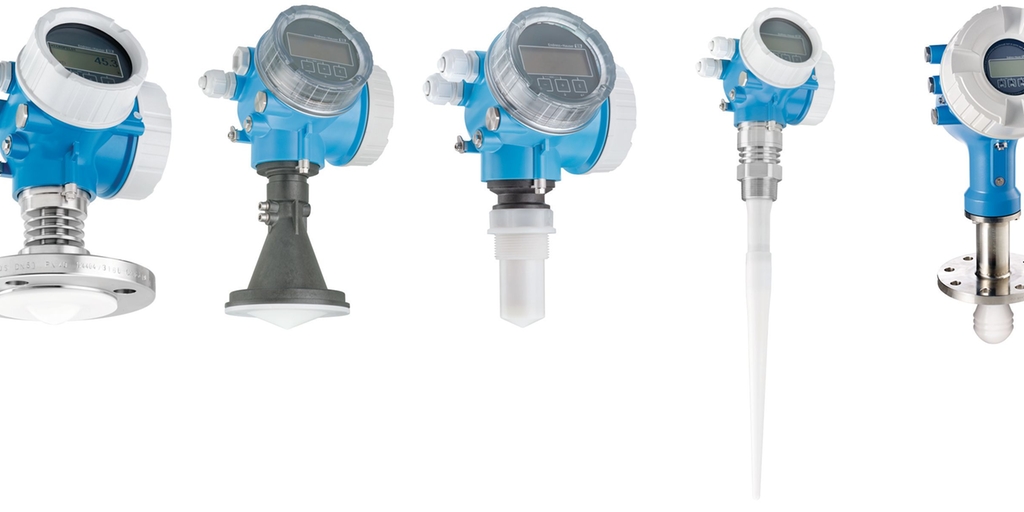

Antennas designed to shed condensation ©Endress+Hauser

Free-space radar transmitters for level measurement typically use 6, 26 and 80 GHz frequencies. Recently, there has been a lot of hype concerning high frequency radar transmitters. Some manufacturers claim that the higher the frequency, the better the performance. This is not necessarily true. Instead, accuracy is dependent upon a combination of frequency, beam angle, antenna configuration and installation but most importantly the dielectric constant of the product itself.

Download to learn about:

  • Free space radars

  • Frequency effects

  • Antenna considerations

  • Measuring ranges

  • Mounting transmitters
