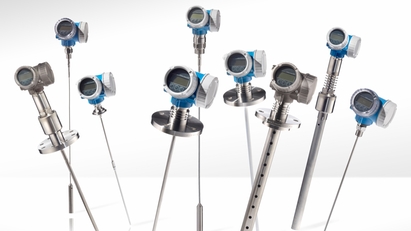

Levelflex guided wave radar

Guided radar level measurement

Continuous level measurement in liquids and solids with guided wave radar sensors

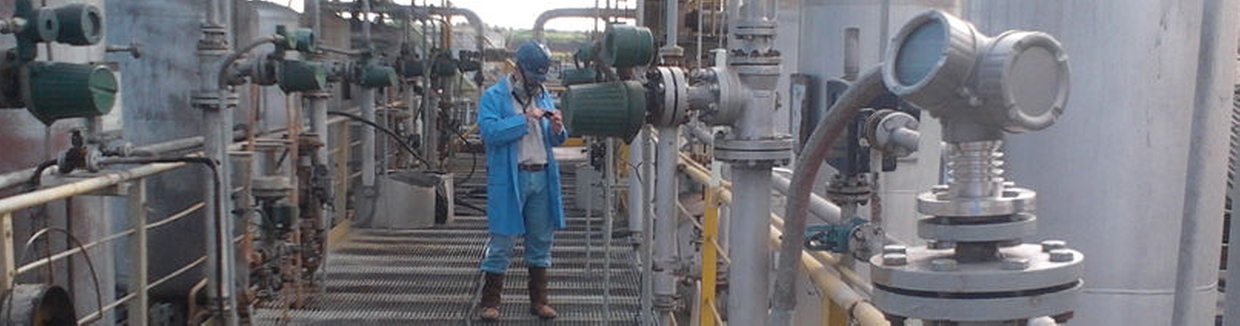

Guided radar level measurement with top-down installation of a Levelflex sensor offers perfect application fit in all industries. Guided radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or heavy duty applications. Check out the broad range of Levelflex devices for guided wave radar applications and click on the button below.

Filter products
Filter products
  • 1
  • 1
  • 1
Close Show results (8)
  • Level
  • Guided wave radar
  • Levelflex
    • F
    • L
    • E
    • X
    Levelflex FMP50 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP50

    • F
    • L
    • E
    • X

    For all basic level applications in liquids

    Predecessor: Levelflex M FMP40, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe: +/- 2 mm (0.08 in)
      Rope probe: +/- 2 mm (0.08 in)

    • Process temperature

      -20...+80 °C
      (-4...+176 °F)

    • Process pressure / max. overpressure limit

      Vacuum...6 bar,
      (Vacuum...87 psi)

    • Max. measurement distance

      Rod: 4 m (13 ft) Min DK>1.6
      Rope: 12 m (40 ft) Min DK>1.6

    • Main wetted parts

      Rod probe: 316L, PPS, Viton
      Rope probe: 316, PPS, Viton

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP51 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP51

    • F
    • L
    • E
    • X

    The standard sensor for highest demands in liquid level measurement

    Predecessor: Levelflex M FMP40, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe :+/- 2 mm (0.08 in)
      Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
      Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
      Coaxial probe: +/- 2 mm (0.08 in)

    • Process temperature

      -50...+200 °C
      (-58...+392 °F)

    • Process pressure / max. overpressure limit

      Vacuum...40 bar
      (Vacuum...580 psi)

    • Max. measurement distance

      Rod: 10 m (33 ft) Min DK>1.6
      Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
      30m...45 m (98ft...148 ft) Min DK>1,9
      Coaxial probe: 6 m (20 ft) Min DK>1.4

    • Main wetted parts

      Rod probe:
      316L, Alloy C, Ceramic
      Rope probe:
      316, 316L, Alloy C, Ceramic
      Coaxial probe:
      316L, Alloy C, Ceramic, PFA

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP52 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP52

    • F
    • L
    • E
    • X

    Coated probe for use in aggressive liquids

    Predecessor: Levelflex M FMP41C, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe :+/- 2 mm (0.08 in)
      Rope probe <= 15 m (49 ft):
      +/- 2 mm (0.08 in)
      Rope probe > 15 m (49 ft):
      +/- 10 mm (0.39 in)

    • Process temperature

      -50...+200 °C
      (-58...+392 °F)

    • Process pressure / max. overpressure limit

      Vacuum...40 bar
      (Vacuum...580 psi)

    • Max. measurement distance

      Rod:
      4 m (13 ft) Min DK>1.6
      Rope:
      25 m...30 m (82 ft...98 ft) Min DK>1.6;
      30 m...45 m (98 ft...148 ft) Min DK>1,9

    • Main wetted parts

      Rod probe:
      304, 304L, 316L, PTFE, PFA
      Rope probe:
      304, 304L, 316, 316L, PTFE, PFA

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP53

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP53

    • F
    • L
    • E
    • X

    For the highest hygiene requirements in the food and life sciences industry

    Predecessor: Levelflex M FMP43, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe:+/- 2 mm (0.08 in)

    • Process temperature

      -20...+150 °C
      (-4...+302 °F)

    • Process pressure / max. overpressure limit

      Vacuum...16 bar
      (Vacuum...232 psi)

    • Max. measurement distance

      Rod: 6 m (20 ft)
      Min DK>1.6

    • Main wetted parts

      Rod probe:
      304, 304L, 316L, PEEK

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP54 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP54

    • F
    • L
    • E
    • X

    For high temperature and high pressure applications in the oil & gas, chemical and power industry

    Predecessor: Levelflex M FMP45, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe: +/- 2 mm (0.08 in)
      Rope probe <= 15 m (49 ft):
      +/- 2 mm (0.08 in)
      Rope probe > 15 m (49 ft):
      +/- 10 mm (0.39 in)
      Coaxial probe: +/- 2 mm (0.08 in)

    • Process temperature

      XT: -196...+280 °C
      (-321...+536 °F)
      HT: -196...+450 °C
      (-321...+842 °F)

    • Process pressure / max. overpressure limit

      Vacuum...400 bar
      (Vacuum...5800 psi)

    • Max. measurement distance

      Rod:
      10 m (33 ft) Min DK>1.6
      Rope:
      25 m...30 m (82 ft...98 ft) Min DK>1.6;
      30 m...45 m (98 ft...148 ft) Min DK >1,9
      Coaxial probe: 6 m (20 ft) Min DK>1.4

    • Main wetted parts

      Rod probe:
      304, 316L, Alloy C, Ceramic
      Rope probe:
      304, 316, 316L, Alloy C, Ceramic
      Coaxial probe:
      304, 316L, Alloy C, Ceramic

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP55 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP55

    • F
    • L
    • E
    • X

    The Multiparameter device is the innovation in interface measurement

    Predecessor: Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe :
      +/- 2 mm (0.08 in)
      Rope probe:
      +/- 2 mm (0.08 in)
      Coaxial probe:
      +/- 2 mm (0.08 in)

    • Process temperature

      -40...+200 °C
      (-40...+392 °F)

    • Process pressure / max. overpressure limit

      Vacuum...40 bar
      (Vacuum...580 psi)

    • Max. measurement distance

      Rod: 4 m (13 ft)
      Min DK >1.4
      Rope: 10 m (33 ft)
      Min DK >1.4
      Coaxial: 6 m (20 ft)
      Min DK >1.4

    • Main wetted parts

      Rod probe:
      316L, PTFE, PFA
      Rope probe:
      316, 316L, PTFE, PFA
      Coaxial probe:
      316L, PTFE, PFA

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP56 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP56

    • F
    • L
    • E
    • X

    Economically efficient basis model for all level applications in bulk solids

    Predecessor: Levelflex M FMP40, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rope probe: +/- 2 mm (0.08 in)

    • Process temperature

      –40...+120 °C
      (–40...+248 °F)

    • Process pressure / max. overpressure limit

      Vacuum...16 bar
      (Vacuum...232 psi)

    • Max. measurement distance

      Rope: 12 m (40 ft)
      Min DK >1.4

    • Main wetted parts

      Rope probe:
      304, 316, 316Ti, 316L, PEEK, PPS, PA

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
    • F
    • L
    • E
    • X
    Levelflex FMP57 - Guided radar

    Guided radar measurement
    Time-of-Flight
    Levelflex FMP57

    • F
    • L
    • E
    • X

    The standard sensor for highest demands for level measurement in bulk solids

    Predecessor: Levelflex M FMP40, Float Gauge LTC2230

    Show specs at a glance Hide details
    • Accuracy

      Rod probe: +/- 2 mm (0.08 in)
      Rope probe <= 15 m (49ft):
      +/- 2 mm (0.08 in)
      Rope probe > 15 m (49ft):
      +/- 10 mm (0,39 in)

    • Process temperature

      -40...+150 °C
      (-40...+302 °F)

    • Process pressure / max. overpressure limit

      Vacuum...16 bar
      (Vacuum...232 psi)

    • Max. measurement distance

      Rod:
      4 m (13 ft) Min DK>1.4
      Rope:
      20 m...25 m (66 ft...82 ft) Min DK >1.4;
      25 m...30 m (82ft...98 ft) Min DK >1.6;
      30 m...45 m (98ft...148 ft) Min DK>1,9

    • Main wetted parts

      Rod probe:
      316Ti, 316L, PEEK, PPS
      Rope probe:
      304, 316, 316Ti, 316L, PEEK, PPS, PA

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Guided radar level measurement

Our product finder helps you to search for suitable measuring devices, software or system components via product characteristics. Applicator leads you through an individual product selection via application parameters.

Guided radar level measurement is well suited to liquids and bulk solids. The surface condition of the medium is of minor importance due to the safe guidance of the reflected waves. Turbulent liquid surfaces or foam formation as well as different angled surfaces or outflow funnels, as the occur in bulk solids, do not influence the measurement. Guided radar is also the first choice for interface measurement.

Measuring Principle Guided Radar with Time-of-Flight

Guided radar measurement: Measuring Principle

Levelflex works with high-frequency radar pulses which are emitted and guided along the probe. As the pulse meets the medium surface, part of the emitted pulse is reflected due to a change of the dc value (relative dielectric constant). The Time-of-Flight between pulse launching and receiving is measured and analyzed by the instrument and constitutes a direct measure for the distance between the process connection and the product surface.

Benefits

  • Reliable measurement: Unaffected by medium surfaces and tank obstacles or baffles

  • Additional measuring safety through End-of-Probe (EoP) evaluation

  • Safe measurement also during filling
