pH/ORP transmitter

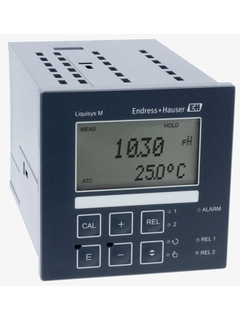

Liquisys CPM223

pH/ORP transmitter ©Endress+Hauser

Compact panel device for all industries

Liquisys CPM223 is a standard pH/ORP transmitter for all analog and digital Memosens sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and two-point calibration make configuration and operation fast and easy.

  • Benefits

    • More operational safety: Continuous process check system, customized alarm configuration, proven Memosens interface for reliable sensor connection.

    • Reliable self-monitoring: Sensor check system for pH glass and reference, calibration plausibility check.

    • ...

  • Field of application

    The Liquisys CPM223 transmitter works with all pH/ORP glass and ISFET sensors in non-hazardous areas, for example in these industries and their utilities:

    • Chemicals

    • Food & Beverages

    • Power & Energy

    • Water & Wastewater

    • Primaries & Metal

    Liquisys CPM223...

Features and specifications

Back

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process water

  • Characteristic

    4-wire transmitter with a two-line display

  • Design

    pH/ORP-transmitter in a panel housing

  • Material

    panel housing

  • Dimension

    96mm x 96mm x 146mm (built in depth)

  • Temperature sensor

    Display and current output

  • Ex certification

    No

  • Ingres protection

    IP65

  • Input

    One-channel-transmitter

  • Output

    0/4-20mA, Hart, Profibus.

  • Additional certifications

    CSA Gen. Purpose

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Characteristic

    4-wire transmitter with a two-line display

  • Design

    pH/ORP transmitter in a panel housing (96x96 mm)

  • Material

    panel housing

  • Dimension

    96 mm x 96 mm x 146 mm(built in depth)
    3.74x3.74x5.61 inch (built in depth)

  • Temperature sensor

    Display and current output

  • Ex certification

    No

  • Ingres protection

    IP65

  • Input

    One-channel-transmitter

  • Output

    0/4-20 mA, Hart, Profibus.

  • Additional certifications

    CSA Gen. Purpose

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51500320

      Kit CXM2X3 Relaismod. 2rel

      Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.

  • 290
    • Nr 290 Order code 51511446

      KIT CXM2X3 relay mod. 2rel / CSA

      Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.

  • 300
    • Nr 300 Order code 51500321

      Kit CXM2X3 Relaismodule 4rel

      Upgrade of LIQUISYS-M basic version by 4 floating changeover contacts.

    • Nr 300 Order code 71129943

      Kit CxM2x3: realy modul 4 REL prot. coat

      Upgrade of basic function of LIQUISYS-M with 4 dry changeover contacts eletronics with protection coating

    • Nr 300 Order code 51511447

      KIT CXM2X3 relay mod. 4rel / CSA

  • 290
    • Nr 290 Order code 51504304

      Kit CXM2X3 Relais Mod. 2rel.+I/CSA

      Upgrade of LIQUISYS-M basic version by 2 contacts and current input 4-20mA.

  • 300
    • Nr 300 Order code 51504305

      Kit CXM2X3 Relais Mod. 4Rel+I/CSA

      Upgrade of LIQUISYS-M basic version by 4 contacts and current input 4-20mA.

  • 10
    • Nr 10 Order code 51500317

      KIT CXM2X3 power supply 100..230 V AC

    • Nr 10 Order code 71129939

      KIT CXM2X3 power supply AC prot.coating

      CxM2x3 power supply 100/115/230 V AC eletronics with protection coating

  • 20
    • Nr 20 Order code 51500318

      KIT CxM2x3 power supply 24 AC/DC

      KIT CxM2x3 power supply DC

  • 330
  • 310
  • 340
  • 430
  • 230
    • Nr 230 Order code 51507096

      KIT MKP2 Transmitter module pH/ORP/IsFET

    • Nr 230 Order code 51518244

      KIT MKP3 transmitter module pH/ORP

      for pH glass sensor and ORP sensor

    • Nr 230 Order code 51514966

      KIT MKD1 Memosens-Transmittermodule cpl.

    • Nr 230 Order code 71129957

      KIT MKD1 universal transm digital coat.

      CPM2x3 MKD1 Transmitter module for Memosens communication eletronics with protection coating

  • 40
    • Nr 40 Order code 51501081

      KIT CPM2X3 Central module I1

    • Nr 40 Order code 51501083

      KIT CPM2x3 central module I1 HART

    • Nr 40 Order code 71129949

      KIT CPM2x3 central module I1HART coating

      CPM2x3 central modul 1 x current output with HART eletronics with protection coating

    • Nr 40 Order code 51501082

      KIT CPM2x3 Central modul I2

    • Nr 40 Order code 51501084

      KIT CPM2x3 central module I2 HART

    • Nr 40 Order code 51501085

      KIT CPM2X3 central module Profibus PA

    • Nr 40 Order code 51502503

      Kit CPM2X3 central module Profibus DP

    • Nr 40 Order code 71134724

      Kit CPM2x3: Central mod. PB DP; H/W 2.1x

      Content: 1x Central module Profibus DP Module name: LSCP-DP qualifired from H/W 2.10

  • 290
    • Nr 290 Order code 71134732

      Kit CxM2x3: Relay mod. for PBDP; H/W2.1x

      Content: 1x Relay module Profibus DP 2x Relay, 1x Current input DP connection qualified from H/W 2.10

  • 422
  • 235
  • 335
    • Order code 51500385

      Upgrade "Plus-Package" for LIQUISYS-M

      Upgrade of LIQUISYS-M basic version (parameter pH,Cond.,Tu,CL,O2 (WX to WS)) to S-version (plus-package). Serial number of instrument needed.

    • Order code 51500963

      Upgrade cleaning for LIQUISYS-M

      Upgrade of LIQUISYS-M basic version by cleaning functionality (Chemoclean) (serial number of instrument needed). If not yet installed, a 4-relay board must be ordered separately (51500321).

  • 210
    • Nr 210 Order code 50074961

      elbow BNC-plug

      Angular plug for connection of a pH measuring cable (for panel- mounted transmitter).
